Oberheim is proud to announce the release of the TEO-5 desktop module, a compact yet powerful addition to our venerated line of synthesizers. Designed for musicians and producers who want the iconic Oberheim sound in a space-saving format, the TEO-5 desktop module delivers all the same signature sounds and synthesis features as its sibling, the acclaimed TEO-5 keyboard.
Key Features

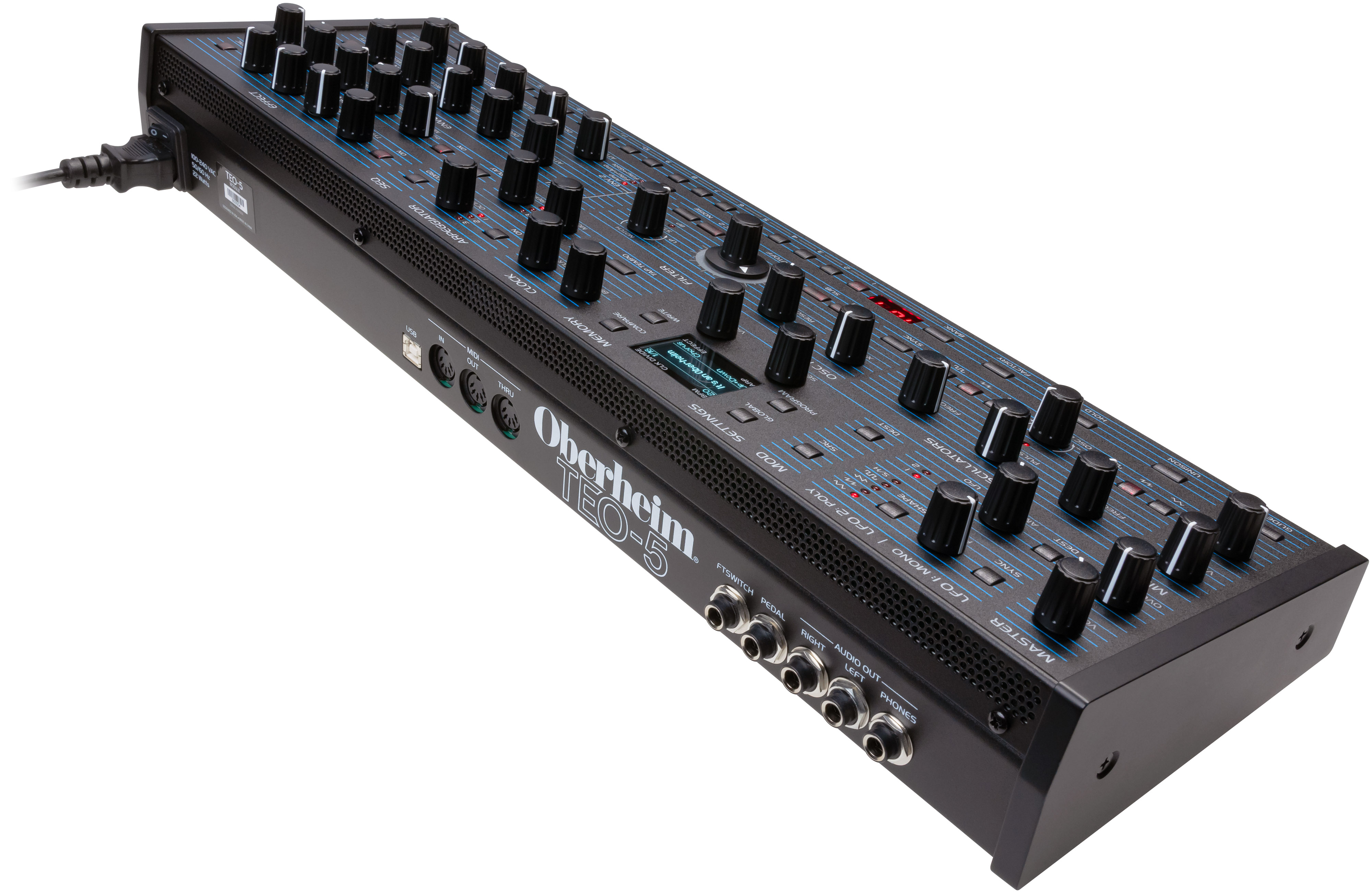

Desktop Module
- All the same signature sounds and synthesis functions as the acclaimed TEO-5 keyboard.

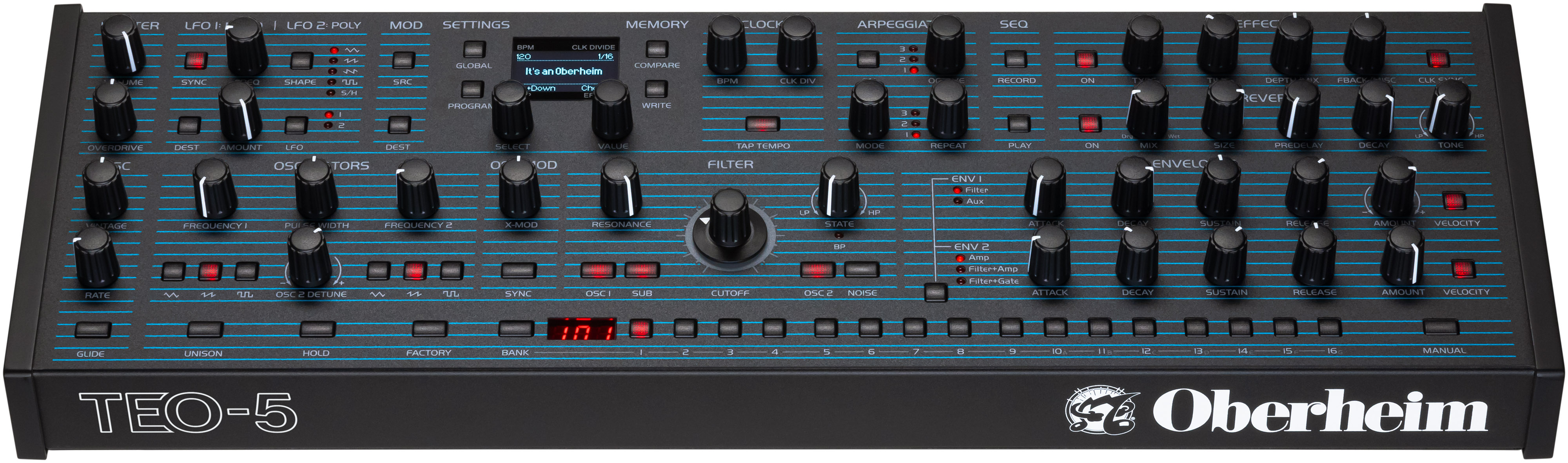

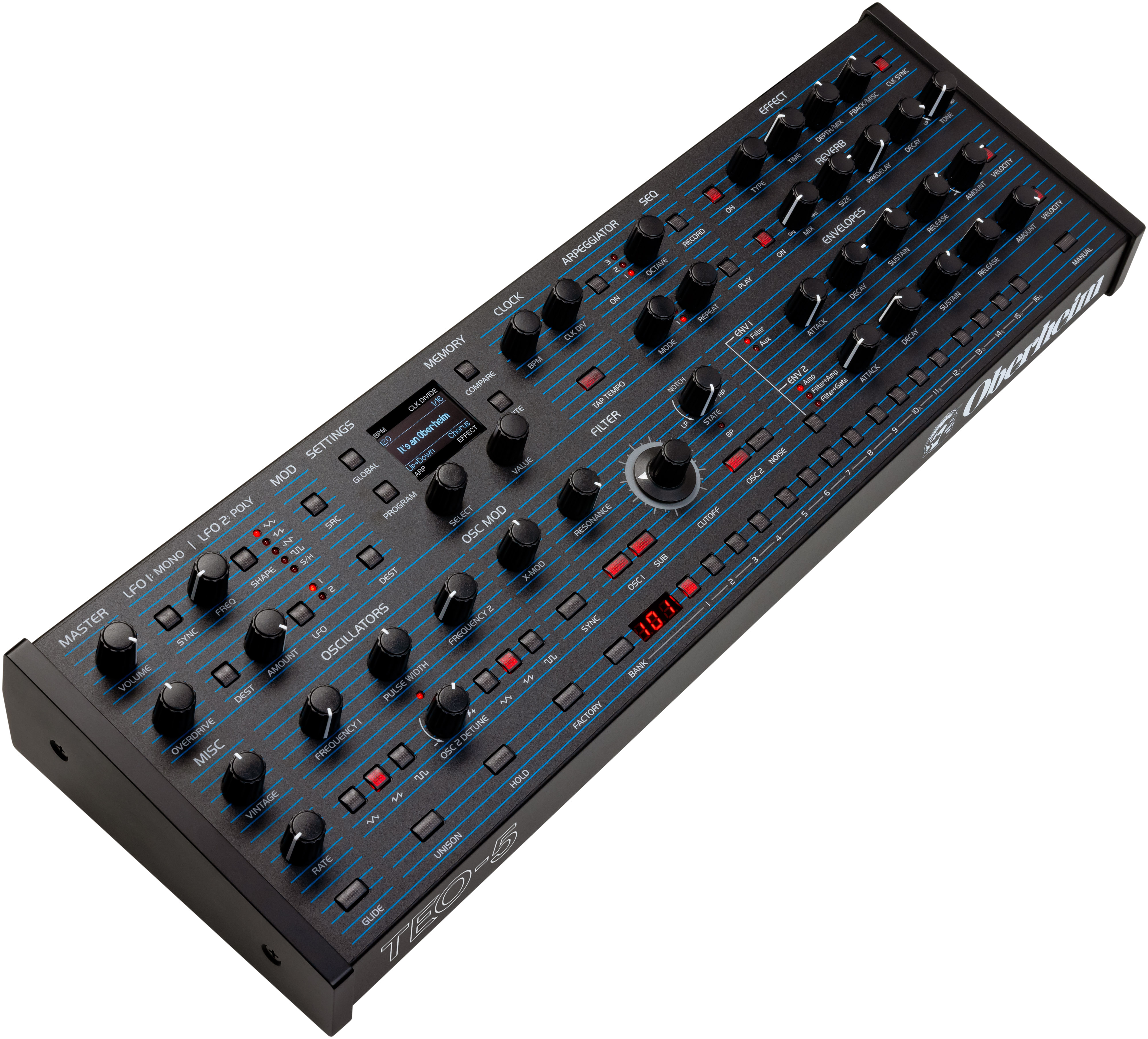

- Provides the same knob-based experience with all the same synthesis features accessible from the top panel as the keyboard.
- Less than half the size of the keyboard and easy to transport.
TEO-5
5-Voice VCO/VCF-based polyphonic synthesizer
OSCILLATORS
- 2x VCOs and sub oscillator per voice.
- Simultaneously selectable waveshapes for each oscillator: triangle, saw, variable pulse.
- Oscillator sync and linear through-zero FM.
STATE VARIABLE FILTER
- Classic SEM multimode filter (LP, HP, BP and Notch).
- State knob continuously morphs from Low-Pass through Notch to High-Pass.
MODULATION
- 2 envelopes and 2 LFOs with assignable routing
- LFO tempo sync
- Deep modulation matrix with 19 slots x 19 sources x 64 destinations
VINTAGE KNOB
- Recreates vintage synth characteristics by adding voice-to voice variations in component behaviour.
EFFECTS
- One dedicated reverb with damping, pre-delay, decay and tone.
- One multi-effect with stereo delay, BBD delay, tape delay, chorus, flanger, Oberheim phase shifter and ring modulator emulations, vintage rotating speaker, distortion, high-pass filter and Lo-Fi.
- Dedicated Overdrive effect.
PERFORMANCE CONTROLS
- Classic arpeggiator and polyphonic step sequencer.
- Polyphonic portamento (glide).
- Unison (monophonic) mode with configurable voice count, from one to all five voices.
PATCH MEMORY
- 256 user and 256 factory programs in 32 banks of 16 programs each.

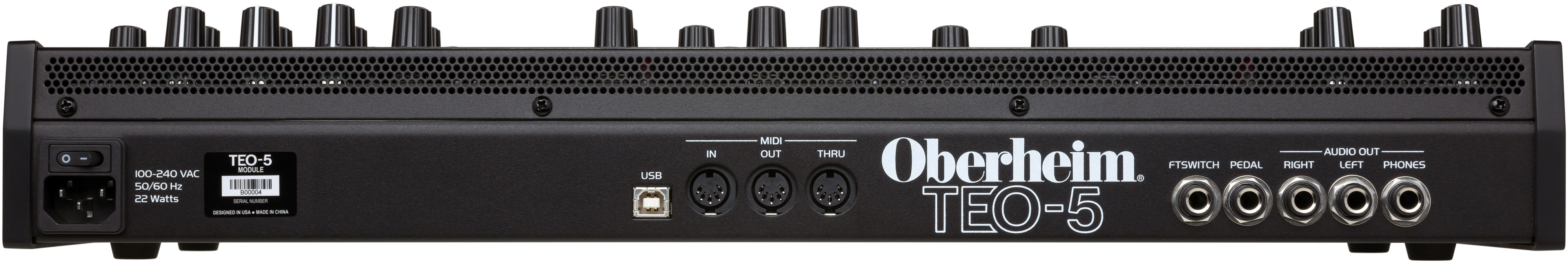

IN/OUT
- Left and right audio outputs (2 x 1/4” jack)
- Headphone output (stereo, 1/4” phone jack)
- MIDI in, out, and thru ports
- USB for bidirectional MIDI communication
- Volume expression pedal input
- Sustain footswitch input
POWER
- IEC AC power inlet for internal power supply.
- Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 22 Watts maximum power consumption.
